Normal Map Sensor Reading In Hg A typical vacuum guage is zeroed at atmospheric pressure so when its reading 0 its actually reading 1 atmosphere or approx 14 6 psi or 29 30 in Hg Thats how it can be confusing to relate MAP with Vacuum and reading MAP values will look inverted compared to a vacuum guage

MAP sensor should read ambient pressure with the key on engine off If you floor it MAP should read approx ambient which will be over 22 in hg pressure Idle MAP reading is going to be around 10 in hg pressure If your scanner is converting it to a vacuum reading then you will have to subract that from the ambient to get a pressure reading To calculate manifold vacuum subtract MAP sensor reading in kPa from 100 With a MAP of high 30s the vacuum is in low 60s at idle That vacuum would be about 18 5 inches which is about what it should be at idle When driving the MAP reading will correspond fairly closely to the load being placed on the engine

Normal Map Sensor Reading In Hg

Normal Map Sensor Reading In Hg
https://europe1.discourse-cdn.com/arduino/original/3X/3/0/30d159bc5956cf30445eafac087cf34542eba0fd.jpg

Kpa To Psi Jobpastor
https://d3nwuojyo9cq3j.cloudfront.net/images/product/Vacuum-Conversion-Chart_1_2_1_1_1.jpg

Odd MAP Sensor Readings On Data Log YouTube
https://i.ytimg.com/vi/JSxqqm_fRLE/maxresdefault.jpg

MAP Sensor is not your problem Matt It s functioning properly and in a MAF based system doesn t provide a large amount of input to your air mass calculations anyway From what I ve seen you ve got to consider a lazy injector on bank 1 as a culprit At WOT there is as much as a 60mv difference between the two banks narrowband readings My 1993 Celica 5S FE MAP outputs 3 60VDC 0 psi or 0 in Hg meaning at no vacuum normal atmospheric pressure Under conditions of very high vacuum my 1993 Celica 5S FE MAP outputs 1 01VDC at 12 28 psi or 25 00 in Hg the gas is more which means the engine is running rich However I did notice the map sensor reading one year ago

The MAP sensor reading should be about thirty minus whatever number in inches Hg the vacuum gauge reads MAP is manifold absolute pressure Vacuum is pressure below that of the atmosphere The AutoXray might have lines on the display for both MAP and vacuum Normal idle should be steady with no more than a 50 RPM variation This was the first clue The MAP voltage readings should range between 0 9 to 1 5 volts This vehicle is high at times indicating pressure pulses in the intake Erratic RPM and MAP sensor readings normally indicate an internal misfire condition due to improper sealing of the

More picture related to Normal Map Sensor Reading In Hg

What You Need To Know About A MAP Sensor Technician Academy
https://technician.academy/wp-content/uploads/2019/01/MAP-sensor.jpg

O2 Sensor Normal Reading Electronic Sensor Blog
https://i2.wp.com/www.thirdgen.org/forums/attachments/dfi-ecm/172152d1235065310-o2-sensor-reading-o2-graph-b.jpg

Map Sensor GM And LT1 TBI OEM
http://cdn.shopify.com/s/files/1/0013/4004/7465/products/CRU-R020017_a_1024x1024.jpg?v=1572178213

Your map sensor is rated at max 2 5bar absolute pressure 22 5psi gage and may saturate at 2 6bar abs max 23 5psi Check MAP reading idle That is the reading when there is no boost Current weather data shows 30 01 in HG My scanguage does not show 14 7 PSI at idle It shows 14 5 PSI scottab Veteran Member The normal MAP sensor reading in Hg can vary depending on the specific vehicle and conditions Typically the pressure at idle ranges from 3 to 5 Hg The manifold pressure when the engine is not running can vary from 28 to 31 Hg which is also known as barometric pressure

[desc-10] [desc-11]

MAP Sensor Reading FORScan Forum
https://i.ibb.co/jZgZjxn/IDLE.jpg

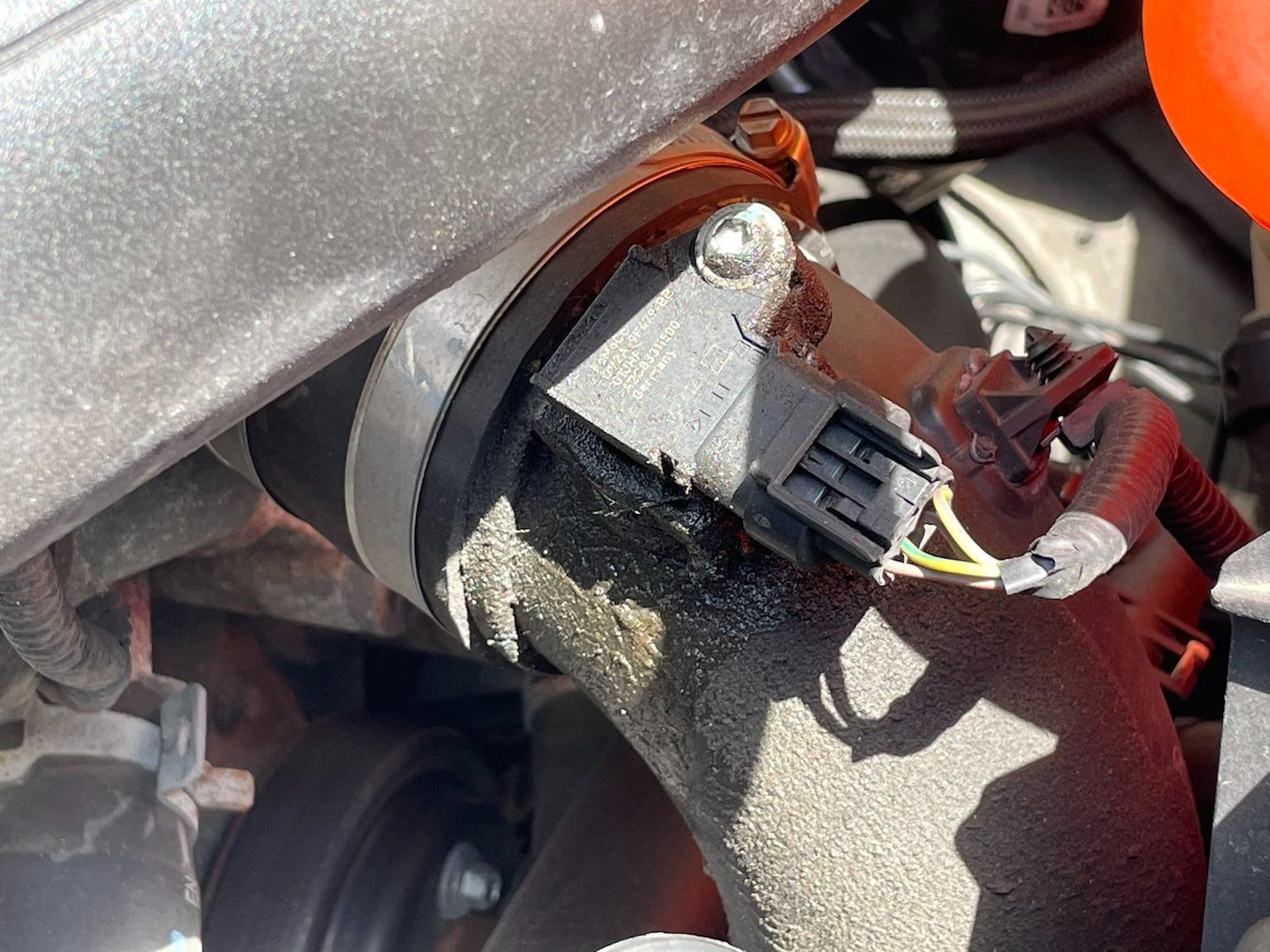

MAP Sensor Oily Normal Ford F150 Forum Community Of Ford Truck Fans
