Jeep Patriot Map Sensor Location Jeep Patriot 2007 2017 2 4L MAP Sensor Location and Replacement In this video we show you the location and step by step process for replacing the Manifold
This is where the Map Sensor is located on my 2010 Jeep Patriot To fit Map sensor two screws 1 electrical connection 3 mins no special tools Jeep Stoneacre Liverpool quoted me 858 32 VAT 715 27 MAP sensor bought
Jeep Patriot Map Sensor Location
Jeep Patriot Map Sensor Location
https://www.moparpartsinc.com/images/uploads/SimplePart - Chrysler/fullsize/a_20151020_1504213122.png
2012 Jeep Patriot 2 4l Crankshaft Position Sensor Location
https://i.ytimg.com/vi/pdTPU_TN12U/maxresdefault.jpg
Jeep Patriot Compass MK 2 0 2 4 Ltr MAP Sensor 07 10
https://www.renegade-station.de/images/product_images/original_images/5033310AB-4.jpg
So I figured I would start with the MAP sensor Thanks Save Share Reply Quote Like Sort by Oldest first Oldest first Newest first Most reactions Sandstone 11547 posts Joined 2011 Add to quote Only show this user 2 Find answers to all your Jeep Patriot technical questions Show Less Full Forum Listing Display If MAP sensor voltage changes repair connector or wiring harness as necessary Perform TEST VER 1 3 If MAP sensor voltage does not change condition required to set fault is not present at this time MAP SENSOR VOLTAGE TOO LOW fault sets if MAP sensor output is less than 1 2 volts at start or less than 2 volt with engine running
Yes the MAP sensor is on the front of the intake manifold just above the alternator and is retained by a screw To get to it remove the engine cover by pulling it up off the ballstuds disconnect the electrical connector form the map sensor remove the screw it appears to be a Torx and pull the sensor from the manifold Looking for the map sensor location on crd so I can take it out and clean it if anyone can take a photo that would be much appreciated I have already cleaned my maf sensor fitted new air filter fuel filter oil change and oil filter and had engine terracleaned so I want to finish off cleaning everything else while im at it
More picture related to Jeep Patriot Map Sensor Location
2 Jeep Patriot Wiring Diagram Diagrama El ctrico JEEP PATRIOT
https://static-cdn.imageservice.cloud/4090336/2008-jeep-patriot-sensors-engine-mopar-parts-giant.jpg

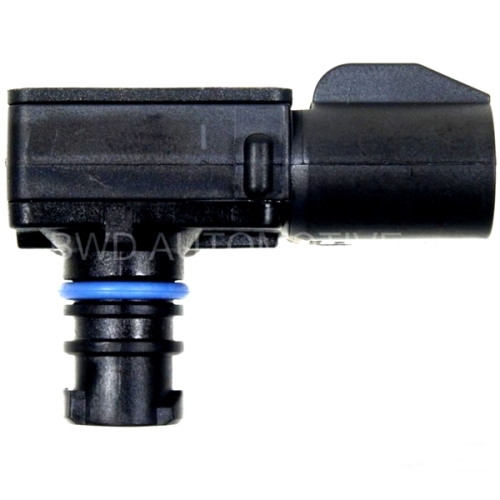

Jeep Patriot Compass MK 2 0 Ltr 2 4 Ltr MAP Sensor Standard 07 15
https://www.renegade-station.de/images/product_images/popup_images/5033310AB-STD-V1.jpg
2012 Jeep Patriot Sensor Map 05033310AB Factory Chrysler Parts
https://www.factorychryslerparts.com/images/parts/Chrysler/fullsize/i2269714.jpg
Just a MAP Manifold Absolute Pressure sensor The Diesel engine shows one but not the gas engine Todd Mods I did to me previous 2007 Jeep Patriot 4x4 FD1 235 75R15 Tires 15 Powder Coated Jeep Wheels Black Now White Mesh Grill Black Muffler DVD Headrests Every diagram i have searched does not indicate a proper location or clear Jeep told me it was behind the felt against the cab Please Please I have search for this sensor and I am truly lost Jeep Patriot What is the MAP sensor located in a Jeep Patriot 2016 2 4L Every diagram i have searched does not indicate a proper location or clear
